Base class for all UI components that should be derived from when creating new widget types. More...

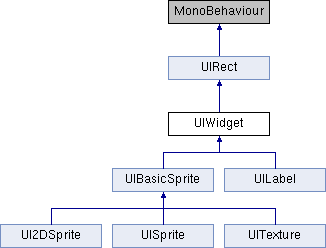

Inheritance diagram for UIWidget:

Public Types
enum	Pivot { Pivot.TopLeft, Pivot.Top, Pivot.TopRight, Pivot.Left, Pivot.Center, Pivot.Right, Pivot.BottomLeft, Pivot.Bottom, Pivot.BottomRight }

enum	AspectRatioSource { AspectRatioSource.Free, AspectRatioSource.BasedOnWidth, AspectRatioSource.BasedOnHeight }

Public Types inherited from UIRect
enum	AnchorUpdate { AnchorUpdate.OnEnable, AnchorUpdate.OnUpdate, AnchorUpdate.OnStart }

Public Member Functions
delegate void	OnDimensionsChanged ()

delegate void	OnPostFillCallback (UIWidget widget, int bufferOffset, BetterList< Vector3 > verts, BetterList< Vector2 > uvs, BetterList< Color32 > cols)

delegate bool	HitCheck (Vector3 worldPos)

void	SetDimensions (int w, int h)
	Adjust the widget's dimensions without going through the anchor validation logic. More...

override Vector3[]	GetSides (Transform relativeTo)
	Get the sides of the rectangle relative to the specified transform. The order is left, top, right, bottom. More...

override float	CalculateFinalAlpha (int frameID)
	Widget's final alpha, after taking the panel's alpha into account. More...

override void	Invalidate (bool includeChildren)
	Update the widget's visibility and final alpha. More...

float	CalculateCumulativeAlpha (int frameID)
	Same as final alpha, except it doesn't take own visibility into consideration. Used by panels. More...

override void	SetRect (float x, float y, float width, float height)
	Set the widget's rectangle. More...

void	ResizeCollider ()
	Adjust the widget's collider size to match the widget's dimensions. More...

Bounds	CalculateBounds ()
	Calculate the widget's bounds, optionally making them relative to the specified transform. More...

Bounds	CalculateBounds (Transform relativeParent)
	Calculate the widget's bounds, optionally making them relative to the specified transform. More...

void	SetDirty ()
	Mark the widget as changed so that the geometry can be rebuilt. More...

void	RemoveFromPanel ()
	Remove this widget from the panel. More...

virtual void	MarkAsChanged ()
	Tell the panel responsible for the widget that something has changed and the buffers need to be rebuilt. More...

UIPanel	CreatePanel ()
	Ensure we have a panel referencing this widget. More...

void	CheckLayer ()
	Check to ensure that the widget resides on the same layer as its panel. More...

override void	ParentHasChanged ()
	Checks to ensure that the widget is still parented to the right panel. More...

bool	UpdateVisibility (bool visibleByAlpha, bool visibleByPanel)
	Update the widget's visibility state. More...

bool	UpdateTransform (int frame)
	Check to see if the widget has moved relative to the panel that manages it More...

bool	UpdateGeometry (int frame)
	Update the widget and fill its geometry if necessary. Returns whether something was changed. More...

void	WriteToBuffers (BetterList< Vector3 > v, BetterList< Vector2 > u, BetterList< Color32 > c, BetterList< Vector3 > n, BetterList< Vector4 > t)
	Append the local geometry buffers to the specified ones. More...

virtual void	MakePixelPerfect ()
	Make the widget pixel-perfect. More...

virtual void	OnFill (BetterList< Vector3 > verts, BetterList< Vector2 > uvs, BetterList< Color32 > cols)
	Virtual function called by the UIPanel that fills the buffers. More...

Public Member Functions inherited from UIRect
void	Update ()
	Rectangles need to update in a specific order – parents before children. When deriving from this class, override its OnUpdate() function instead. More...

void	UpdateAnchors ()
	Manually update anchored sides. More...

void	SetAnchor (Transform t)
	Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions. More...

void	SetAnchor (GameObject go)
	Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions. More...

void	SetAnchor (GameObject go, int left, int bottom, int right, int top)
	Anchor this rectangle to the specified transform. More...

void	ResetAnchors ()
	Ensure that all rect references are set correctly on the anchors. More...

void	ResetAndUpdateAnchors ()
	Convenience method that resets and updates the anchors, all at once. More...

Static Public Member Functions
static int	FullCompareFunc (UIWidget left, UIWidget right)
	Static widget comparison function used for depth sorting. More...

static int	PanelCompareFunc (UIWidget left, UIWidget right)
	Static widget comparison function used for inter-panel depth sorting. More...

Public Attributes
OnDimensionsChanged	onChange
	Notification triggered when the widget's dimensions or position changes. More...

OnPostFillCallback	onPostFill
	Notification triggered after the widget's buffer has been filled. More...

UIDrawCall.OnRenderCallback	mOnRender
	Callback triggered when the widget is about to be renderered (OnWillRenderObject). NOTE: This property is only exposed for the sake of speed to avoid property execution. In most cases you will want to use UIWidget.onRender instead. More...

bool	autoResizeBoxCollider = false
	If set to 'true', the box collider's dimensions will be adjusted to always match the widget whenever it resizes. More...

bool	hideIfOffScreen = false
	Hide the widget if it happens to be off-screen. More...

AspectRatioSource	keepAspectRatio = AspectRatioSource.Free
	Whether the rectangle will attempt to maintain a specific aspect ratio. More...

float	aspectRatio = 1f
	If you want the anchored rectangle to keep a specific aspect ratio, set this value. More...

HitCheck	hitCheck
	Custom hit check function. If set, all hit checks (including events) will call this function, passing the world position. Return 'true' if it's within the bounds of your choice, 'false' otherwise. More...

UIPanel	panel
	Panel that's managing this widget. More...

UIGeometry	geometry = new UIGeometry()
	Widget's generated geometry. More...

bool	fillGeometry = true
	If set to 'false', the widget's OnFill function will not be called, letting you define custom geometry at will. More...

UIDrawCall	drawCall
	Internal usage – draw call that's drawing the widget. More...

Public Attributes inherited from UIRect
AnchorPoint	leftAnchor = new AnchorPoint()
	Left side anchor. More...

AnchorPoint	rightAnchor = new AnchorPoint(1f)
	Right side anchor. More...

AnchorPoint	bottomAnchor = new AnchorPoint()
	Bottom side anchor. More...

AnchorPoint	topAnchor = new AnchorPoint(1f)
	Top side anchor. More...

AnchorUpdate	updateAnchors = AnchorUpdate.OnUpdate
	Whether anchors will be recalculated on every update. More...

float	finalAlpha = 1f
	Final calculated alpha. More...

Protected Member Functions
override void	OnEnable ()
	Automatically find the parent rectangle. More...

void	UpdateFinalAlpha (int frameID)
	Force-calculate the final alpha value. More...

virtual void	Awake ()
	Remember whether we're in play mode. More...

override void	OnInit ()
	Mark the widget and the panel as having been changed. More...

virtual void	UpgradeFrom265 ()
	Facilitates upgrading from NGUI 2.6.5 or earlier versions. More...

override void	OnStart ()
	Virtual Start() functionality for widgets. More...

override void	OnAnchor ()
	Update the anchored edges and ensure the widget is registered with a panel. More...

override void	OnUpdate ()
	Ensure we have a panel to work with. More...

override void	OnDisable ()
	Clear references. More...

Protected Member Functions inherited from UIRect
Vector3	GetLocalPos (AnchorPoint ac, Transform trans)
	Helper function that gets the specified anchor's position relative to the chosen transform. More...

void	Start ()
	Set anchor rect references on start. More...

Protected Attributes
Color	mColor = Color.white

Pivot	mPivot = Pivot.Center

int	mWidth = 100

int	mHeight = 100

int	mDepth = 0

bool	mPlayMode = true

Vector4	mDrawRegion = new Vector4(0f, 0f, 1f, 1f)

Vector3[]	mCorners = new Vector3[4]

CanvasRenderer	mRen

Protected Attributes inherited from UIRect
GameObject	mGo

Transform	mTrans

BetterList< UIRect >	mChildren = new BetterList<UIRect>()

bool	mChanged = true

bool	mStarted = false

bool	mParentFound = false

Camera	mCam

Properties
UIDrawCall.OnRenderCallback	onRender `[get, set]`
	Set the callback that will be triggered when the widget is being rendered (OnWillRenderObject). This is where you would set material properties and shader values. More...

CanvasRenderer	canvasRenderer `[get]`
	Canvas renderer that's responsible for the widget's geometry, if there is one present. More...

Vector4	drawRegion `[get, set]`
	Draw region alters how the widget looks without modifying the widget's rectangle. A region is made up of 4 relative values (0-1 range). The order is Left (X), Bottom (Y), Right (Z) and Top (W). To have a widget's left edge be 30% from the left side, set X to 0.3. To have the widget's right edge be 30% from the right hand side, set Z to 0.7. More...

Vector2	pivotOffset `[get]`
	Pivot offset in relative coordinates. Bottom-left is (0, 0). Top-right is (1, 1). More...

int	width `[get, set]`
	Widget's width in pixels. More...

int	height `[get, set]`
	Widget's height in pixels. More...

Color	color `[get, set]`
	Color used by the widget. More...

override float	alpha `[get, set]`
	Widget's alpha – a convenience method. More...

bool	isVisible `[get]`
	Whether the widget is currently visible. More...

bool	hasVertices `[get]`
	Whether the widget has vertices to draw. More...

Pivot	rawPivot `[get, set]`
	Change the pivot point and do not attempt to keep the widget in the same place by adjusting its transform. More...

Pivot	pivot `[get, set]`
	Set or get the value that specifies where the widget's pivot point should be. More...

int	depth `[get, set]`
	Depth controls the rendering order – lowest to highest. More...

int	raycastDepth `[get]`
	Raycast depth order on widgets takes the depth of their panel into consideration. This functionality is used to determine the "final" depth of the widget for drawing and raycasts. More...

override Vector3[]	localCorners `[get]`
	Local space corners of the widget. The order is bottom-left, top-left, top-right, bottom-right. More...

virtual Vector2	localSize `[get]`
	Local width and height of the widget in pixels. More...

Vector3	localCenter `[get]`
	Widget's center in local coordinates. Don't forget to transform by the widget's transform. More...

override Vector3[]	worldCorners `[get]`
	World-space corners of the widget. The order is bottom-left, top-left, top-right, bottom-right. More...

Vector3	worldCenter `[get]`
	World-space center of the widget. More...

virtual Vector4	drawingDimensions `[get]`
	Local space region where the actual drawing will take place. X = left, Y = bottom, Z = right, W = top. More...

virtual Material	material `[get, set]`
	Material used by the widget. More...

virtual Texture	mainTexture `[get, set]`
	Texture used by the widget. More...

virtual Shader	shader `[get, set]`
	Shader is used to create a dynamic material if the widget has no material to work with. More...

Vector2	relativeSize `[get]`
	Do not use this, it's obsolete. More...

bool	hasBoxCollider `[get]`
	Convenience function that returns 'true' if the widget has a box collider. More...

virtual int	minWidth `[get]`
	Minimum allowed width for this widget. More...

virtual int	minHeight `[get]`
	Minimum allowed height for this widget. More...

virtual Vector4	border `[get, set]`
	Dimensions of the sprite's border, if any. More...

Properties inherited from UIRect
GameObject	cachedGameObject `[get]`
	Game object gets cached for speed. Can't simply return 'mGo' set in Awake because this function may be called on a prefab. More...

Transform	cachedTransform `[get]`
	Transform gets cached for speed. Can't simply return 'mTrans' set in Awake because this function may be called on a prefab. More...

Camera	anchorCamera `[get]`
	Camera used by anchors. More...

bool	isFullyAnchored `[get]`
	Whether the rectangle is currently anchored fully on all sides. More...

virtual bool	isAnchoredHorizontally `[get]`
	Whether the rectangle is anchored horizontally. More...

virtual bool	isAnchoredVertically `[get]`
	Whether the rectangle is anchored vertically. More...

virtual bool	canBeAnchored `[get]`
	Whether the rectangle can be anchored. More...

UIRect	parent `[get]`
	Get the rectangle's parent, if any. More...

UIRoot	root `[get]`
	Get the root object, if any. More...

bool	isAnchored `[get]`
	Returns 'true' if the widget is currently anchored on any side. More...

abstract float	alpha `[get, set]`
	Local alpha, not relative to anything. More...

abstract Vector3[]	localCorners `[get]`
	Local-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right. More...

abstract Vector3[]	worldCorners `[get]`
	World-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right. More...

float	cameraRayDistance `[get]`
	Helper function that returns the distance to the camera's directional vector hitting the panel's plane. More...

Additional Inherited Members
Static Protected Attributes inherited from UIRect
static Vector3[]	mSides = new Vector3[4]

Detailed Description

Base class for all UI components that should be derived from when creating new widget types.

Member Enumeration Documentation

enum UIWidget.AspectRatioSource

Enumerator
Free
BasedOnWidth
BasedOnHeight

enum UIWidget.Pivot

Enumerator
TopLeft
Top
TopRight
Left
Center
Right
BottomLeft
Bottom
BottomRight

Member Function Documentation

virtual void UIWidget.Awake ( )

protectedvirtual

Remember whether we're in play mode.

Bounds UIWidget.CalculateBounds ( )

Calculate the widget's bounds, optionally making them relative to the specified transform.

Bounds UIWidget.CalculateBounds ( Transform relativeParent )

Calculate the widget's bounds, optionally making them relative to the specified transform.

float UIWidget.CalculateCumulativeAlpha ( int frameID )

Same as final alpha, except it doesn't take own visibility into consideration. Used by panels.

override float UIWidget.CalculateFinalAlpha ( int frameID )

virtual

Widget's final alpha, after taking the panel's alpha into account.

Implements UIRect.

void UIWidget.CheckLayer ( )

Check to ensure that the widget resides on the same layer as its panel.

UIPanel UIWidget.CreatePanel ( )

Ensure we have a panel referencing this widget.

static int UIWidget.FullCompareFunc	(	UIWidget	left,
		UIWidget	right
	)

static

Static widget comparison function used for depth sorting.

override Vector3 [] UIWidget.GetSides ( Transform relativeTo )

virtual

Get the sides of the rectangle relative to the specified transform. The order is left, top, right, bottom.

Reimplemented from UIRect.

Reimplemented in UILabel.

delegate bool UIWidget.HitCheck ( Vector3 worldPos )

override void UIWidget.Invalidate ( bool includeChildren )

virtual

Update the widget's visibility and final alpha.

Reimplemented from UIRect.

virtual void UIWidget.MakePixelPerfect ( )

virtual

Make the widget pixel-perfect.

Reimplemented in UILabel, UISprite, UI2DSprite, and UITexture.

virtual void UIWidget.MarkAsChanged ( )

virtual

Tell the panel responsible for the widget that something has changed and the buffers need to be rebuilt.

Reimplemented in UILabel.

override void UIWidget.OnAnchor ( )

protectedvirtual

Update the anchored edges and ensure the widget is registered with a panel.

Implements UIRect.

Reimplemented in UILabel.

delegate void UIWidget.OnDimensionsChanged ( )

override void UIWidget.OnDisable ( )

protectedvirtual

Clear references.

Reimplemented from UIRect.

Reimplemented in UILabel.

override void UIWidget.OnEnable ( )

protectedvirtual

Automatically find the parent rectangle.

Reimplemented from UIRect.

virtual void UIWidget.OnFill	(	BetterList< Vector3 >	verts,
		BetterList< Vector2 >	uvs,
		BetterList< Color32 >	cols
	)

virtual

Virtual function called by the UIPanel that fills the buffers.

Reimplemented in UILabel, UISprite, UI2DSprite, and UITexture.

override void UIWidget.OnInit ( )

protectedvirtual

Mark the widget and the panel as having been changed.

Reimplemented from UIRect.

Reimplemented in UILabel, and UISprite.

delegate void UIWidget.OnPostFillCallback	(	UIWidget	widget,
		int	bufferOffset,
		BetterList< Vector3 >	verts,
		BetterList< Vector2 >	uvs,
		BetterList< Color32 >	cols
	)

override void UIWidget.OnStart ( )

protectedvirtual

Virtual Start() functionality for widgets.

Implements UIRect.

Reimplemented in UILabel.

override void UIWidget.OnUpdate ( )

protectedvirtual

Ensure we have a panel to work with.

Reimplemented from UIRect.

Reimplemented in UISprite, and UI2DSprite.

static int UIWidget.PanelCompareFunc	(	UIWidget	left,
		UIWidget	right
	)

static

Static widget comparison function used for inter-panel depth sorting.

override void UIWidget.ParentHasChanged ( )

virtual

Checks to ensure that the widget is still parented to the right panel.

Reimplemented from UIRect.

void UIWidget.RemoveFromPanel ( )

Remove this widget from the panel.

void UIWidget.ResizeCollider ( )

Adjust the widget's collider size to match the widget's dimensions.

void UIWidget.SetDimensions	(	int	w,
		int	h
	)

Adjust the widget's dimensions without going through the anchor validation logic.

void UIWidget.SetDirty ( )

Mark the widget as changed so that the geometry can be rebuilt.

override void UIWidget.SetRect	(	float	x,
		float	y,
		float	width,
		float	height
	)

virtual

Set the widget's rectangle.

Implements UIRect.

void UIWidget.UpdateFinalAlpha ( int frameID )

protected

Force-calculate the final alpha value.

bool UIWidget.UpdateGeometry ( int frame )

Update the widget and fill its geometry if necessary. Returns whether something was changed.

bool UIWidget.UpdateTransform ( int frame )

Check to see if the widget has moved relative to the panel that manages it

bool UIWidget.UpdateVisibility	(	bool	visibleByAlpha,
		bool	visibleByPanel
	)

Update the widget's visibility state.

virtual void UIWidget.UpgradeFrom265 ( )

protectedvirtual

Facilitates upgrading from NGUI 2.6.5 or earlier versions.

Reimplemented in UILabel.

void UIWidget.WriteToBuffers	(	BetterList< Vector3 >	v,
		BetterList< Vector2 >	u,
		BetterList< Color32 >	c,
		BetterList< Vector3 >	n,
		BetterList< Vector4 >	t
	)

Append the local geometry buffers to the specified ones.

Member Data Documentation

float UIWidget.aspectRatio = 1f

If you want the anchored rectangle to keep a specific aspect ratio, set this value.

bool UIWidget.autoResizeBoxCollider = false

If set to 'true', the box collider's dimensions will be adjusted to always match the widget whenever it resizes.

UIDrawCall UIWidget.drawCall

Internal usage – draw call that's drawing the widget.

bool UIWidget.fillGeometry = true

If set to 'false', the widget's OnFill function will not be called, letting you define custom geometry at will.

UIGeometry UIWidget.geometry = new UIGeometry()

Widget's generated geometry.

bool UIWidget.hideIfOffScreen = false

Hide the widget if it happens to be off-screen.

HitCheck UIWidget.hitCheck

Custom hit check function. If set, all hit checks (including events) will call this function, passing the world position. Return 'true' if it's within the bounds of your choice, 'false' otherwise.

AspectRatioSource UIWidget.keepAspectRatio = AspectRatioSource.Free

Whether the rectangle will attempt to maintain a specific aspect ratio.

Color UIWidget.mColor = Color.white

protected

Vector3 [] UIWidget.mCorners = new Vector3[4]

protected

int UIWidget.mDepth = 0

protected

Vector4 UIWidget.mDrawRegion = new Vector4(0f, 0f, 1f, 1f)

protected

int UIWidget.mHeight = 100

protected

UIDrawCall.OnRenderCallback UIWidget.mOnRender

Callback triggered when the widget is about to be renderered (OnWillRenderObject). NOTE: This property is only exposed for the sake of speed to avoid property execution. In most cases you will want to use UIWidget.onRender instead.

Pivot UIWidget.mPivot = Pivot.Center

protected

bool UIWidget.mPlayMode = true

protected

CanvasRenderer UIWidget.mRen

protected

int UIWidget.mWidth = 100

protected

OnDimensionsChanged UIWidget.onChange

Notification triggered when the widget's dimensions or position changes.

OnPostFillCallback UIWidget.onPostFill

Notification triggered after the widget's buffer has been filled.

UIPanel UIWidget.panel

Panel that's managing this widget.

Property Documentation

override float UIWidget.alpha

getset

Widget's alpha – a convenience method.

virtual Vector4 UIWidget.border

getset

Dimensions of the sprite's border, if any.

CanvasRenderer UIWidget.canvasRenderer

get

Canvas renderer that's responsible for the widget's geometry, if there is one present.

Color UIWidget.color

getset

Color used by the widget.

int UIWidget.depth

getset

Depth controls the rendering order – lowest to highest.

virtual Vector4 UIWidget.drawingDimensions

get

Local space region where the actual drawing will take place. X = left, Y = bottom, Z = right, W = top.

Vector4 UIWidget.drawRegion

getset

Draw region alters how the widget looks without modifying the widget's rectangle. A region is made up of 4 relative values (0-1 range). The order is Left (X), Bottom (Y), Right (Z) and Top (W). To have a widget's left edge be 30% from the left side, set X to 0.3. To have the widget's right edge be 30% from the right hand side, set Z to 0.7.

bool UIWidget.hasBoxCollider

get

Convenience function that returns 'true' if the widget has a box collider.

bool UIWidget.hasVertices

get

Whether the widget has vertices to draw.

int UIWidget.height

getset

Widget's height in pixels.

bool UIWidget.isVisible

get

Whether the widget is currently visible.

Vector3 UIWidget.localCenter

get

Widget's center in local coordinates. Don't forget to transform by the widget's transform.

override Vector3 [] UIWidget.localCorners

get

Local space corners of the widget. The order is bottom-left, top-left, top-right, bottom-right.

virtual Vector2 UIWidget.localSize

get

Local width and height of the widget in pixels.

virtual Texture UIWidget.mainTexture

getset

Texture used by the widget.

virtual Material UIWidget.material

getset

Material used by the widget.

virtual int UIWidget.minHeight

get

Minimum allowed height for this widget.

virtual int UIWidget.minWidth

get

Minimum allowed width for this widget.

UIDrawCall.OnRenderCallback UIWidget.onRender

getset

Set the callback that will be triggered when the widget is being rendered (OnWillRenderObject). This is where you would set material properties and shader values.

Pivot UIWidget.pivot

getset

Set or get the value that specifies where the widget's pivot point should be.

Vector2 UIWidget.pivotOffset

get

Pivot offset in relative coordinates. Bottom-left is (0, 0). Top-right is (1, 1).

Pivot UIWidget.rawPivot

getset

Change the pivot point and do not attempt to keep the widget in the same place by adjusting its transform.

int UIWidget.raycastDepth

get

Raycast depth order on widgets takes the depth of their panel into consideration. This functionality is used to determine the "final" depth of the widget for drawing and raycasts.

Vector2 UIWidget.relativeSize

get

Do not use this, it's obsolete.

virtual Shader UIWidget.shader

getset

Shader is used to create a dynamic material if the widget has no material to work with.

int UIWidget.width

getset

Widget's width in pixels.

Vector3 UIWidget.worldCenter

get

World-space center of the widget.

override Vector3 [] UIWidget.worldCorners

get

World-space corners of the widget. The order is bottom-left, top-left, top-right, bottom-right.

The documentation for this class was generated from the following file:

D:/Projects/NGUI/Assets/NGUI/Scripts/Internal/UIWidget.cs

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Properties

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
