Base class for all tweening operations. More...

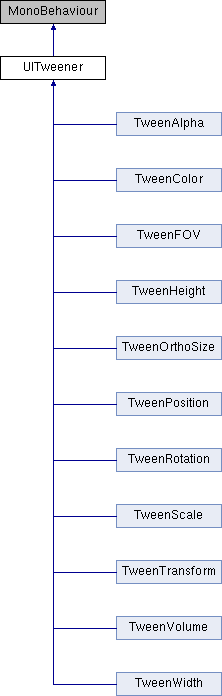

Inheritance diagram for UITweener:

Public Types
enum	Method { Method.Linear, Method.EaseIn, Method.EaseOut, Method.EaseInOut, Method.BounceIn, Method.BounceOut }

enum	Style { Style.Once, Style.Loop, Style.PingPong }

Public Member Functions
void	SetOnFinished (EventDelegate.Callback del)
	Convenience function – set a new OnFinished event delegate (here for to be consistent with RemoveOnFinished). More...

void	SetOnFinished (EventDelegate del)
	Convenience function – set a new OnFinished event delegate (here for to be consistent with RemoveOnFinished). More...

void	AddOnFinished (EventDelegate.Callback del)
	Convenience function – add a new OnFinished event delegate (here for to be consistent with RemoveOnFinished). More...

void	AddOnFinished (EventDelegate del)
	Convenience function – add a new OnFinished event delegate (here for to be consistent with RemoveOnFinished). More...

void	RemoveOnFinished (EventDelegate del)
	Remove an OnFinished delegate. Will work even while iterating through the list when the tweener has finished its operation. More...

void	Sample (float factor, bool isFinished)
	Sample the tween at the specified factor. More...

void	Play ()
	Play the tween. More...

void	PlayForward ()
	Play the tween forward. More...

void	PlayReverse ()
	Play the tween in reverse. More...

void	Play (bool forward)
	Manually activate the tweening process, reversing it if necessary. More...

void	ResetToBeginning ()
	Manually reset the tweener's state to the beginning. If the tween is playing forward, this means the tween's start. If the tween is playing in reverse, this means the tween's end. More...

void	Toggle ()
	Manually start the tweening process, reversing its direction. More...

virtual void	SetStartToCurrentValue ()
	Set the 'from' value to the current one. More...

virtual void	SetEndToCurrentValue ()
	Set the 'to' value to the current one. More...

Static Public Member Functions
static T	Begin< T > (GameObject go, float duration)
	Starts the tweening operation. More...

Public Attributes
Method	method = Method.Linear
	Tweening method used. More...

Style	style = Style.Once
	Does it play once? Does it loop? More...

AnimationCurve	animationCurve = new AnimationCurve(new Keyframe(0f, 0f, 0f, 1f), new Keyframe(1f, 1f, 1f, 0f))
	Optional curve to apply to the tween's time factor value. More...

bool	ignoreTimeScale = true
	Whether the tween will ignore the timescale, making it work while the game is paused. More...

float	delay = 0f
	How long will the tweener wait before starting the tween? More...

float	duration = 1f
	How long is the duration of the tween? More...

bool	steeperCurves = false
	Whether the tweener will use steeper curves for ease in / out style interpolation. More...

int	tweenGroup = 0
	Used by buttons and tween sequences. Group of '0' means not in a sequence. More...

List< EventDelegate >	onFinished = new List<EventDelegate>()
	Event delegates called when the animation finishes. More...

GameObject	eventReceiver

string	callWhenFinished

Static Public Attributes
static UITweener	current
	Current tween that triggered the callback function. More...

Protected Member Functions
virtual void	Start ()
	Update as soon as it's started so that there is no delay. More...

abstract void	OnUpdate (float factor, bool isFinished)
	Actual tweening logic should go here. More...

Properties
float	amountPerDelta `[get]`
	Amount advanced per delta time. More...

float	tweenFactor `[get, set]`
	Tween factor, 0-1 range. More...

AnimationOrTween.Direction	direction `[get]`
	Direction that the tween is currently playing in. More...

Detailed Description

Base class for all tweening operations.

Member Enumeration Documentation

enum UITweener.Method

Enumerator
Linear
EaseIn
EaseOut
EaseInOut
BounceIn
BounceOut

enum UITweener.Style

Enumerator
Once
Loop
PingPong

Member Function Documentation

void UITweener.AddOnFinished ( EventDelegate.Callback del )

Convenience function – add a new OnFinished event delegate (here for to be consistent with RemoveOnFinished).

void UITweener.AddOnFinished ( EventDelegate del )

Convenience function – add a new OnFinished event delegate (here for to be consistent with RemoveOnFinished).

static T UITweener.Begin< T >	(	GameObject	go,
		float	duration
	)

static

Starts the tweening operation.

Type Constraints

T

:

UITweener

abstract void UITweener.OnUpdate	(	float	factor,
		bool	isFinished
	)

protectedpure virtual

Actual tweening logic should go here.

Implemented in TweenVolume, TweenColor, TweenPosition, TweenAlpha, TweenOrthoSize, TweenHeight, TweenWidth, TweenFOV, TweenRotation, TweenScale, and TweenTransform.

void UITweener.Play ( )

Play the tween.

void UITweener.Play ( bool forward )

Manually activate the tweening process, reversing it if necessary.

void UITweener.PlayForward ( )

Play the tween forward.

void UITweener.PlayReverse ( )

Play the tween in reverse.

void UITweener.RemoveOnFinished ( EventDelegate del )

Remove an OnFinished delegate. Will work even while iterating through the list when the tweener has finished its operation.

void UITweener.ResetToBeginning ( )

Manually reset the tweener's state to the beginning. If the tween is playing forward, this means the tween's start. If the tween is playing in reverse, this means the tween's end.

void UITweener.Sample	(	float	factor,
		bool	isFinished
	)

Sample the tween at the specified factor.

virtual void UITweener.SetEndToCurrentValue ( )

virtual

Set the 'to' value to the current one.

Reimplemented in TweenPosition, TweenColor, TweenVolume, TweenHeight, TweenWidth, TweenAlpha, TweenScale, TweenOrthoSize, TweenRotation, and TweenFOV.

void UITweener.SetOnFinished ( EventDelegate.Callback del )

Convenience function – set a new OnFinished event delegate (here for to be consistent with RemoveOnFinished).

void UITweener.SetOnFinished ( EventDelegate del )

Convenience function – set a new OnFinished event delegate (here for to be consistent with RemoveOnFinished).

virtual void UITweener.SetStartToCurrentValue ( )

virtual

Set the 'from' value to the current one.

Reimplemented in TweenPosition, TweenColor, TweenVolume, TweenHeight, TweenWidth, TweenAlpha, TweenScale, TweenOrthoSize, TweenRotation, and TweenFOV.

virtual void UITweener.Start ( )

protectedvirtual

Update as soon as it's started so that there is no delay.

void UITweener.Toggle ( )

Manually start the tweening process, reversing its direction.

Member Data Documentation

AnimationCurve UITweener.animationCurve = new AnimationCurve(new Keyframe(0f, 0f, 0f, 1f), new Keyframe(1f, 1f, 1f, 0f))

Optional curve to apply to the tween's time factor value.

string UITweener.callWhenFinished

UITweener UITweener.current

static

Current tween that triggered the callback function.

float UITweener.delay = 0f

How long will the tweener wait before starting the tween?

float UITweener.duration = 1f

How long is the duration of the tween?

GameObject UITweener.eventReceiver

bool UITweener.ignoreTimeScale = true

Whether the tween will ignore the timescale, making it work while the game is paused.

Method UITweener.method = Method.Linear

Tweening method used.

List<EventDelegate> UITweener.onFinished = new List<EventDelegate>()

Event delegates called when the animation finishes.

bool UITweener.steeperCurves = false

Whether the tweener will use steeper curves for ease in / out style interpolation.

Style UITweener.style = Style.Once

Does it play once? Does it loop?

int UITweener.tweenGroup = 0

Used by buttons and tween sequences. Group of '0' means not in a sequence.

Property Documentation

float UITweener.amountPerDelta

get

Amount advanced per delta time.

AnimationOrTween.Direction UITweener.direction

get

Direction that the tween is currently playing in.

float UITweener.tweenFactor

getset

Tween factor, 0-1 range.

The documentation for this class was generated from the following file:

D:/Projects/NGUI/Assets/NGUI/Scripts/Tweening/UITweener.cs
