Abstract UI rectangle containing functionality common to both panels and widgets. A UI rectangle contains 4 anchor points (one for each side), and it ensures that they are updated in the proper order. More...

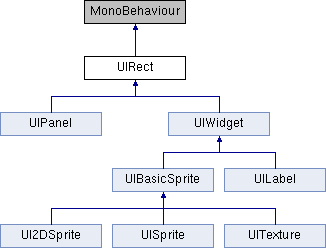

Inheritance diagram for UIRect:

Classes
class	AnchorPoint

Public Types
enum	AnchorUpdate { AnchorUpdate.OnEnable, AnchorUpdate.OnUpdate, AnchorUpdate.OnStart }

Public Member Functions
abstract float	CalculateFinalAlpha (int frameID)
	Get the final cumulative alpha. More...

virtual void	Invalidate (bool includeChildren)
	Sets the local 'changed' flag, indicating that some parent value(s) are now be different, such as alpha for example. More...

virtual Vector3[]	GetSides (Transform relativeTo)
	Get the sides of the rectangle relative to the specified transform. The order is left, top, right, bottom. More...

void	Update ()
	Rectangles need to update in a specific order – parents before children. When deriving from this class, override its OnUpdate() function instead. More...

void	UpdateAnchors ()
	Manually update anchored sides. More...

void	SetAnchor (Transform t)
	Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions. More...

void	SetAnchor (GameObject go)
	Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions. More...

void	SetAnchor (GameObject go, int left, int bottom, int right, int top)
	Anchor this rectangle to the specified transform. More...

void	ResetAnchors ()
	Ensure that all rect references are set correctly on the anchors. More...

void	ResetAndUpdateAnchors ()
	Convenience method that resets and updates the anchors, all at once. More...

abstract void	SetRect (float x, float y, float width, float height)
	Set the rectangle manually. More...

virtual void	ParentHasChanged ()
	Call this function when the rectangle's parent has changed. More...

Public Attributes
AnchorPoint	leftAnchor = new AnchorPoint()
	Left side anchor. More...

AnchorPoint	rightAnchor = new AnchorPoint(1f)
	Right side anchor. More...

AnchorPoint	bottomAnchor = new AnchorPoint()
	Bottom side anchor. More...

AnchorPoint	topAnchor = new AnchorPoint(1f)
	Top side anchor. More...

AnchorUpdate	updateAnchors = AnchorUpdate.OnUpdate
	Whether anchors will be recalculated on every update. More...

float	finalAlpha = 1f
	Final calculated alpha. More...

Protected Member Functions
Vector3	GetLocalPos (AnchorPoint ac, Transform trans)
	Helper function that gets the specified anchor's position relative to the chosen transform. More...

virtual void	OnEnable ()
	Automatically find the parent rectangle. More...

virtual void	OnInit ()
	Automatically find the parent rectangle. More...

virtual void	OnDisable ()
	Clear the parent rectangle reference. More...

void	Start ()
	Set anchor rect references on start. More...

abstract void	OnAnchor ()
	Update the dimensions of the rectangle using anchor points. More...

abstract void	OnStart ()
	Abstract start functionality, ensured to happen after the anchor rect references have been set. More...

virtual void	OnUpdate ()
	Abstract update functionality, ensured to happen after the targeting anchors have been updated. More...

Protected Attributes
GameObject	mGo

Transform	mTrans

BetterList< UIRect >	mChildren = new BetterList<UIRect>()

bool	mChanged = true

bool	mStarted = false

bool	mParentFound = false

Camera	mCam

Static Protected Attributes
static Vector3[]	mSides = new Vector3[4]

Properties
GameObject	cachedGameObject `[get]`
	Game object gets cached for speed. Can't simply return 'mGo' set in Awake because this function may be called on a prefab. More...

Transform	cachedTransform `[get]`
	Transform gets cached for speed. Can't simply return 'mTrans' set in Awake because this function may be called on a prefab. More...

Camera	anchorCamera `[get]`
	Camera used by anchors. More...

bool	isFullyAnchored `[get]`
	Whether the rectangle is currently anchored fully on all sides. More...

virtual bool	isAnchoredHorizontally `[get]`
	Whether the rectangle is anchored horizontally. More...

virtual bool	isAnchoredVertically `[get]`
	Whether the rectangle is anchored vertically. More...

virtual bool	canBeAnchored `[get]`
	Whether the rectangle can be anchored. More...

UIRect	parent `[get]`
	Get the rectangle's parent, if any. More...

UIRoot	root `[get]`
	Get the root object, if any. More...

bool	isAnchored `[get]`
	Returns 'true' if the widget is currently anchored on any side. More...

abstract float	alpha `[get, set]`
	Local alpha, not relative to anything. More...

abstract Vector3[]	localCorners `[get]`
	Local-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right. More...

abstract Vector3[]	worldCorners `[get]`
	World-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right. More...

float	cameraRayDistance `[get]`
	Helper function that returns the distance to the camera's directional vector hitting the panel's plane. More...

Detailed Description

Abstract UI rectangle containing functionality common to both panels and widgets. A UI rectangle contains 4 anchor points (one for each side), and it ensures that they are updated in the proper order.

Member Enumeration Documentation

enum UIRect.AnchorUpdate

Enumerator
OnEnable
OnUpdate
OnStart

Member Function Documentation

abstract float UIRect.CalculateFinalAlpha ( int frameID )

pure virtual

Get the final cumulative alpha.

Implemented in UIWidget, and UIPanel.

Vector3 UIRect.GetLocalPos	(	AnchorPoint	ac,
		Transform	trans
	)

protected

Helper function that gets the specified anchor's position relative to the chosen transform.

virtual Vector3 [] UIRect.GetSides ( Transform relativeTo )

virtual

Get the sides of the rectangle relative to the specified transform. The order is left, top, right, bottom.

Reimplemented in UILabel, UIWidget, and UIPanel.

virtual void UIRect.Invalidate ( bool includeChildren )

virtual

Sets the local 'changed' flag, indicating that some parent value(s) are now be different, such as alpha for example.

Reimplemented in UIWidget, and UIPanel.

abstract void UIRect.OnAnchor ( )

protectedpure virtual

Update the dimensions of the rectangle using anchor points.

Implemented in UIWidget, UIPanel, and UILabel.

virtual void UIRect.OnDisable ( )

protectedvirtual

Clear the parent rectangle reference.

Reimplemented in UIWidget, UIPanel, and UILabel.

virtual void UIRect.OnEnable ( )

protectedvirtual

Automatically find the parent rectangle.

Reimplemented in UIPanel, and UIWidget.

virtual void UIRect.OnInit ( )

protectedvirtual

Automatically find the parent rectangle.

Reimplemented in UIWidget, UIPanel, UILabel, and UISprite.

abstract void UIRect.OnStart ( )

protectedpure virtual

Abstract start functionality, ensured to happen after the anchor rect references have been set.

Implemented in UIWidget, UILabel, and UIPanel.

virtual void UIRect.OnUpdate ( )

protectedvirtual

Abstract update functionality, ensured to happen after the targeting anchors have been updated.

Reimplemented in UIWidget, UISprite, and UI2DSprite.

virtual void UIRect.ParentHasChanged ( )

virtual

Call this function when the rectangle's parent has changed.

Reimplemented in UIWidget, and UIPanel.

void UIRect.ResetAnchors ( )

Ensure that all rect references are set correctly on the anchors.

void UIRect.ResetAndUpdateAnchors ( )

Convenience method that resets and updates the anchors, all at once.

void UIRect.SetAnchor ( Transform t )

Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions.

void UIRect.SetAnchor ( GameObject go )

Anchor this rectangle to the specified transform. Note that this function will not keep the rectangle's current dimensions, but will instead assume the target's dimensions.

void UIRect.SetAnchor	(	GameObject	go,
		int	left,
		int	bottom,
		int	right,
		int	top
	)

Anchor this rectangle to the specified transform.

abstract void UIRect.SetRect	(	float	x,
		float	y,
		float	width,
		float	height
	)

pure virtual

Set the rectangle manually.

Implemented in UIWidget, and UIPanel.

void UIRect.Start ( )

protected

Set anchor rect references on start.

void UIRect.Update ( )

Rectangles need to update in a specific order – parents before children. When deriving from this class, override its OnUpdate() function instead.

void UIRect.UpdateAnchors ( )

Manually update anchored sides.

Member Data Documentation

AnchorPoint UIRect.bottomAnchor = new AnchorPoint()

Bottom side anchor.

float UIRect.finalAlpha = 1f

Final calculated alpha.

AnchorPoint UIRect.leftAnchor = new AnchorPoint()

Left side anchor.

Camera UIRect.mCam

protected

bool UIRect.mChanged = true

protected

BetterList<UIRect> UIRect.mChildren = new BetterList<UIRect>()

protected

GameObject UIRect.mGo

protected

bool UIRect.mParentFound = false

protected

Vector3 [] UIRect.mSides = new Vector3[4]

staticprotected

bool UIRect.mStarted = false

protected

Transform UIRect.mTrans

protected

AnchorPoint UIRect.rightAnchor = new AnchorPoint(1f)

Right side anchor.

AnchorPoint UIRect.topAnchor = new AnchorPoint(1f)

Top side anchor.

AnchorUpdate UIRect.updateAnchors = AnchorUpdate.OnUpdate

Whether anchors will be recalculated on every update.

Property Documentation

abstract float UIRect.alpha

getset

Local alpha, not relative to anything.

Camera UIRect.anchorCamera

get

Camera used by anchors.

GameObject UIRect.cachedGameObject

get

Game object gets cached for speed. Can't simply return 'mGo' set in Awake because this function may be called on a prefab.

Transform UIRect.cachedTransform

get

Transform gets cached for speed. Can't simply return 'mTrans' set in Awake because this function may be called on a prefab.

float UIRect.cameraRayDistance

getprotected

Helper function that returns the distance to the camera's directional vector hitting the panel's plane.

virtual bool UIRect.canBeAnchored

get

Whether the rectangle can be anchored.

bool UIRect.isAnchored

get

Returns 'true' if the widget is currently anchored on any side.

virtual bool UIRect.isAnchoredHorizontally

get

Whether the rectangle is anchored horizontally.

virtual bool UIRect.isAnchoredVertically

get

Whether the rectangle is anchored vertically.

bool UIRect.isFullyAnchored

get

Whether the rectangle is currently anchored fully on all sides.

abstract Vector3 [] UIRect.localCorners

get

Local-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right.

UIRect UIRect.parent

get

Get the rectangle's parent, if any.

UIRoot UIRect.root

get

Get the root object, if any.

abstract Vector3 [] UIRect.worldCorners

get

World-space corners of the UI rectangle. The order is bottom-left, top-left, top-right, bottom-right.

The documentation for this class was generated from the following file:

D:/Projects/NGUI/Assets/NGUI/Scripts/Internal/UIRect.cs
